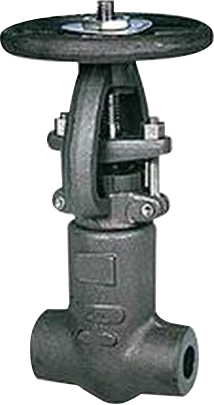

Z61H Self-sealing Cast Steel Gate Valve

The Z61H self-sealing forged steel gate valve is a high-performance industrial valve that is strictly designed and manufactured in accordance with international advanced standards. It is specifically developed for pipeline systems in the fields of petroleum, chemical engineering, power, and energy, where there are high requirements for reliability and sealing performance. Its design and manufacturing fully comply with API 602 and ASME B16.34 standards. The inspection and testing are carried out in accordance with API 598, and the product identification follows the MSS-SP-25 specification, ensuring the global universality and quality reliability of the product. The valve body is made of high-quality forged steel, which has a denser metal structure, higher mechanical strength, and better impact toughness compared to castings, and is particularly suitable for high-pressure, high-temperature, and safety-critical working conditions.

The most distinctive feature of this valve is its self-sealing valve cover design, which typically employs a pressure self-tightening sealing structure. The principle is to utilize the pressure of the system medium acting on specific sealing elements (such as wedge-shaped sealing rings and four-piece rings), so that the higher the internal pressure, the greater the sealing force between the valve cover and the valve body, thereby achieving the effect of "the higher the pressure, the more reliable the seal". This fundamentally solves the problems of leakage and bolt creep relaxation that may occur in traditional flange bolt-connected valve covers under high temperature and high pressure.

The valve structure is of the exposed stem and bracket type. The valve stem threads are located outside the valve cover, making the opening and closing status clearly visible and facilitating the observation by the operators. It adopts the classic wedge-type gate plate design and offers two flow channel options - full diameter or reduced diameter - to meet different flow rate and pressure loss requirements.

Its structure is compact and the length is relatively short, which can effectively save space in pipeline layout. This valve is mainly used as a reliable shut-off device for pipeline media, applicable to water, steam, oil products and other media. It is the ideal choice for critical pipelines that require long-term operation, maintenance-free or low leakage rate.

1. Excellent flow performance and bidirectional sealing capability

The valve adopts a straight-through flow channel. When the gate plate is fully opened, the flow channel is unobstructed, resulting in extremely low fluid resistance and negligible pressure loss. This design also significantly reduces the direct flushing and erosion of the sealing surface by the medium, helping to extend the service life of the sealing pair. Moreover, the valve has bidirectional sealing capability, allowing the flow direction of the medium to be unrestricted. During installation, there is no need to consider the direction of the medium flow, providing great flexibility for pipeline design and installation, and it does not interfere with the medium flow pattern or cause unnecessary pressure drop.

2. Mature and reliable self-sealing valve cover and compact structure

The pressure self-tightening self-sealing valve cover is one of the core advantages of this valve. It eliminates the traditional large flange and bolt group connection and uses system pressure to achieve self-tightening. The structure is simpler, the seal is more reliable, and it is particularly suitable for working conditions with large temperature and pressure fluctuations. Combined with the exposed stem support design and compact shape structure, the valve is overall sturdy and reliable, and the manufacturing process is mature, providing a wide range of applications.

3. Relatively effortless operation and clear status indication

Since the gate plate is in contact with the valve seat sealing surface during the opening and closing process, and the force exerted by the medium pressure on the gate plate is perpendicular to the movement direction when it is fully open or fully closed, the operating force required for opening and closing is relatively small and effortless. The exposed stem structure makes the opening height of the valve clearly visible, providing a clear status indication for the operators, effectively avoiding misjudgment.

4. Targeted selection considerations and optimization suggestions

Despite having many advantages, in actual applications, its inherent characteristics also need to be considered for optimal selection:

Sealing surface maintenance: In cases of frequent opening and closing or when the medium contains solid particles, abrasions may occur between the gate plate and the valve seat sealing surface, and maintenance usually requires disassembling the valve from the pipeline. The convenience of maintenance is relatively complex. Therefore, it is more suitable for infrequently operated, fully open or fully closed conditions.

Installation space requirements: When the valve is opened, the gate plate needs to be lifted above the flow channel, so a large installation height space is required, and the opening and closing times are relatively long. In spaces with limited space or where quick opening and closing are required, this factor needs to be evaluated first.

Structural complexity: Compared with some simpler valve types, its internal structure is relatively complex. However, this complexity is necessary to achieve its high-pressure sealing, reliable cutting-off functions, etc. By choosing a reputable manufacturer, the high precision and reliability brought by the complex structure can be ensured.

The Z61H self-sealing forged steel gate valve is an industrial valve that integrates reliability, excellent flow performance, and mature design. Its self-sealing design, bidirectional flow, and low flow resistance features make it perform well in stable working conditions of pipelines in industries such as petrochemicals and power stations. When users select it, they should conduct a comprehensive assessment based on its suitability for long-term cutting and the requirement for installation space. This can fully leverage its performance advantages and provide a strong guarantee for the safe and stable operation of the system.
