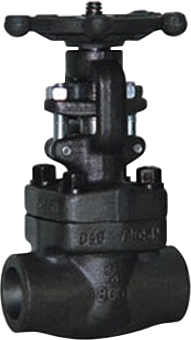

Z61H forged steel high-pressure gate valve

The Z61H forged steel high-pressure gate valve is an industrial shut-off valve specifically designed for small diameters, high pressure, and harsh working conditions. It is manufactured strictly in accordance with international mainstream standards and is suitable for pressure ratings ranging from Class 150 to Class 2500. The valve body is precisely forged from high-quality forged steel (such as A105, F5, F11, F22, etc.) or austenitic stainless steel (F304, F316, etc.), with dense material and high mechanical strength, capable of reliably withstanding a system pressure of up to 25.0 MPa.

This valve has a wide operating temperature range. The carbon steel version is suitable for temperatures ranging from -29°C to 425°C, while the stainless steel version can extend to -29°C to 500°C, enabling it to adapt to various environments from low temperatures to high temperatures. Its nominal diameter covers DN8 to DN100mm, and it offers multiple connection options such as internal threads, flanges, and socket welds, providing high flexibility for the integration of small-diameter high-pressure pipelines.

The designed function of this valve is to completely cut off or connect the pipeline medium. Its core working principle is to control the flow path through the vertical up-and-down movement of the gate plate: when the gate plate is fully raised, the flow path is in a straight-through state, and the resistance of the fluid is minimized; when the gate plate is fully lowered, the finely machined sealing surfaces on both sides closely fit with the valve seat, achieving reliable sealing. It must be emphasized that this valve must not be used for regulating flow or throttling.

If used in a partial-opened state, the high-speed medium will cause the gate plate to vibrate, severely damaging the sealing surface and causing erosion. Therefore, it is most suitable for pipe positions that are not frequently operated and need to remain fully open or fully closed for a long time. By selecting different valve body and internal component materials, this valve can be safely applied to various media such as water, steam, oil, natural gas, nitric acid, acetic acid, oxidizing media, and urea solution. It is a key safety isolation equipment for high-pressure small-diameter pipelines in fields such as petrochemicals, power, natural gas, and fine chemicals.

1. Outstanding high-pressure adaptability and material selectivity

The valve is specially designed for high-pressure environments. Its forged steel body provides far superior pressure-bearing capacity and structural integrity compared to castings, completely avoiding possible sand holes, gas pores and other defects in castings, ensuring safe operation under Class 2500 standards. The rich material library (from carbon steel, chromium-molybdenum steel to stainless steel) enables users to precisely select the most economical and durable material combination based on the corrosiveness, temperature and pressure of the medium, achieving optimal working condition adaptation and cost control.

2. Excellent fluid performance and bidirectional sealing capability

The valve adopts a straight-through flow channel design. When fully open, the gate plate completely leaves the flow channel, resulting in extremely low fluid resistance and negligible pressure loss, which is conducive to system energy conservation. At the same time, the valve is designed for bidirectional sealing, with the medium flow direction not restricted. Installation does not require consideration of the flow direction, and it will not disturb the fluid or cause additional pressure drop, providing great convenience for pipeline design.

3. Compact structure and reliable operation with relatively effortless operation

Thanks to the small diameter and forged steel process, the valve's shape structure is relatively simple and compact, with a short structural length, saving installation space. Its exposed stem design makes the opening and closing status visible. Under normal working conditions, due to the perpendicularity of the medium pressure and the gate plate movement direction, opening and closing are relatively effortless. The mature design ensures good manufacturing processability and wide application range.

4. Clear working condition positioning and selection considerations

To fully utilize the advantages of this valve and extend its service life, users need to apply it based on its design principle:

The core positioning is isolation, not regulation: The product design is clearly only for full opening or full closing. When used as a throttle, it will cause rapid erosion and abrasion of the sealing surface due to high-speed flushing and vibration, and such damage is difficult to repair, usually requiring professional disassembly. Therefore, it perfectly suits the need for long-term reliable isolation.

Space and time factors: Since the gate plate needs to be lifted above the flow channel, the valve opening requires a certain upper space, and the shape height is relatively large, and the opening and closing time is long. In situations with extremely limited space or requiring rapid action, these factors should be considered. Its structure is more complex compared to some valve types, but this is precisely the design necessary for its high-pressure sealing and reliability.

The Z61H forged steel high-pressure gate valve is a professional isolation valve with outstanding performance in high-pressure and small-diameter fields. Its high-pressure bearing capacity, low flow resistance characteristics, bidirectional flowability and flexible material configuration are its significant advantages. Understanding and respecting its design positioning for long-term isolation, avoiding throttling, and considering installation space is the key to ensuring the valve's stable operation in the system and maximizing its value.
