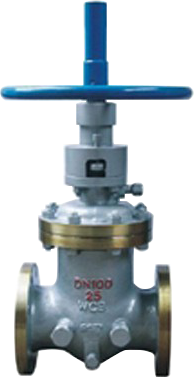

TPZ42H Automatic Leveling O-ring Gate Valve

The TPZ42H automatic leveling oil seal gate valve is a revolutionary high-performance industrial valve that is developed based on the traditional wedge-type elastic gate valve structure, integrating the intelligent fluid pressure drive and active lubrication sealing concepts. It is not merely a simple structural improvement; instead, by integrating a set of precise "automatic oil pressure sealing lubrication system", the valve is upgraded from a static sealing device that relies on the processing accuracy of parts and pre-tightening force to an intelligent device that can sense working conditions, dynamically adapt, and actively enhance sealing.

The core innovation lies in the fact that in the interior of the valve body and at the corresponding sealing surfaces of the gate plate, a set of automatic oil pressure sealing and lubrication mechanisms have been embedded. This mechanism consists of an oil storage cylinder filled with special high-performance sealing grease, a piston that can slide precisely within the cylinder, and a specially designed valve seat channel. Its working principle ingeniously utilizes the inevitable fluid mechanical phenomenon that occurs when the valve is opened or closed and the medium flow is cut off: when the valve performs the closing operation and cuts off the medium flow, a significant pressure difference will instantly form between the chamber inside the valve body filled with pressurized medium and the downstream (exit end) that has been isolated and has a sudden drop in pressure. This pressure difference is not wasted or merely exists as a load, but is captured by the system and converted into driving energy.

Under the continuous action of the pressure difference, the piston moves steadily towards the valve seat, functioning like a precise plunger pushed by an invisible force. This results in a uniform and continuous compression of the sealing grease within the oil storage cylinder. The squeezed-out sealing grease, driven by the pressure, is precisely and quantitatively transported through the pre-processed precise micro-pore channels within the valve seat and completely covers the entire metal sealing contact surface between the gate plate and the valve seat, forming a durable sealing oil film with excellent filling property, lubrication property and isolation property.

This process is completely automatic. Each reliable shutdown is accompanied by an active sealing enhancement. Meanwhile, as a redundant backup for the system, at the front and rear critical parts outside the valve body, there are each installed a set of manual sealing grease compensation press-in mechanism.

When the valve has undergone long-term operation or extreme working conditions, if additional sealing grease is needed, maintenance personnel do not need to disassemble the valve at all. They only need to rotate the external compensation mechanism's cover on-site, and the new sealing grease can be directly delivered to the sealing surface through an independent grease injection channel, instantly restoring or even enhancing the sealing performance. This achieves true online and no-disassembly maintenance.

1. Pressure-driven intelligent sealing technology ensures a reliable and tight seal that becomes tighter as the pressure increases.

The most distinctive feature of this valve is that its sealing force is directly proportional to the system pressure. Traditional valves may leak under high pressure due to deformation. However, the TPZ42H utilizes the pressure difference between the valve chamber formed during closure and the downstream pressure as the power source to automatically push the sealing grease towards the sealing surface. This means that the higher the medium pressure, the greater the driving force on the piston, and the stronger the oil film pressure injected onto the sealing surface. Thus, a virtuous cycle is formed where "the higher the pressure, the more reliable the seal", which is particularly suitable for working conditions with large pressure fluctuations or gradual pressure increase. From a fundamental perspective, it completely eliminates the risk of high-pressure leakage.

2. Dynamic oil film compensation, completely eliminating microscopic leakage paths

No matter how precisely the metal hard seal is processed, there will still be microscopic unevenness. Moreover, under thermal stress or long-term wear, it will cause deformation gaps. The continuous and renewable sealing grease oil film provided by this valve can actively fill these microscopic defects and scratches, establishing a flexible and gap-free isolation layer between the metal sealing pair. This oil film not only achieves bubble-level sealing but also effectively lubricates the sealing surfaces, significantly reducing the friction and wear of the gate and valve seat during the opening and closing process, solving the stubborn problem of the sealing surfaces of traditional gate valves being prone to scratching and erosion.

3. Dual sealing guarantee and convenient online maintenance capabilities

The valve has established a dual sealing guarantee system that is "automatic as the main, manual as the supplement". During normal operation, the automatic system works silently, ensuring the tightness of each closure. When necessary, the external manual compensation mechanism provides an emergency channel that enables rapid restoration of sealing performance without disassembling the valve. This design transforms the traditional "shutdown for major maintenance after failure" mode into "active maintenance during operation and preventive maintenance", significantly reducing unplanned downtime and expensive disassembly and repair costs, and greatly enhancing the operational continuity of pipelines or installations.

4. Significantly extend the service life of the valve and enhance the economic efficiency throughout the entire lifecycle.

Through the continuous lubrication and protection provided by the sealing grease, the metal surfaces of the critical sealing pair of the gate and the valve seat no longer directly come into contact and rub against each other, and the direct flushing of solid particles in the medium is also avoided. This fundamentally delays the wear and damage process of the sealing surfaces, and enables the overhaul cycle and overall service life of the valve to be multiplied. Although the initial investment may be slightly higher, the extremely low failure rate, minimal maintenance requirements, and extremely long service life it brings result in a significant advantage in the overall usage cost of the valve throughout its entire life cycle.

5. Enhanced operational adaptability and sealing reliability

This design is particularly suitable for scenarios where there are extreme requirements for sealing, or where the characteristics of the medium are very demanding. Whether it is dealing with media containing tiny particles that can damage the sealing surface, or in working conditions where the valve body and sealing components undergo thermal expansion and contraction due to frequent temperature changes, the dynamic oil film can continuously compensate for the gap and maintain the integrity of the seal. It inherits the advantages of the wedge-type elastic gate valve, such as its compact structure and low fluid resistance, and fundamentally improves its core sealing performance and reliability. It is an ideal upgraded replacement product for traditional important pipeline shut-off valves.
