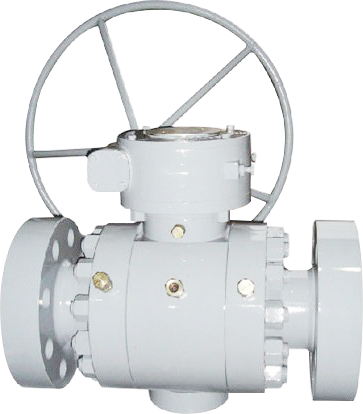

900LB high-pressure ball valve

The 900LB high-pressure ball valve is a multi-functional industrial valve specially designed for ultra-high pressure and harsh working conditions. Its core pressure rating reaches 900LB, and it can be reliably applied to critical pipeline systems with extremely high pressure-bearing requirements. This valve has excellent adaptability to various working conditions, with a temperature range of -29°C to 400°C, capable of meeting the needs of various industrial environments from low temperatures to high temperatures. To accommodate different on-site installation and control requirements, it offers diverse connection methods, including standard reliable flange connections, permanently sealed welding connections, and threaded connections suitable for small-diameter pipelines.

The driving method is also flexible, covering direct manual switching, efficient pneumatic drive, and convenient electric drive for integration into automation systems. In terms of structural design, this series of valves offers both the classic floating structure and the fixed structure suitable for large diameters and high pressures, to meet the requirements of different application scenarios for valve strength and stability. The flow channel adopts a full bore design, minimizing fluid resistance and pressure loss.

The main body of the valve and its key components can be manufactured using various materials based on the characteristics of the medium. For example, they can be made of A105 carbon steel, 304 or 316 stainless steel, etc. The sealing system, as its core advantage, offers multiple material options, including PTFE (polytetrafluoroethylene), N material (such as nylon), oriented polyphenylene, and metal seals, enabling it to precisely match various media ranging from conventional to corrosive, from low temperature to high temperature.

Therefore, the 900LB high-pressure ball valve is widely used in fields such as natural gas transportation, liquefied gas processing, oil extraction and refining, petrochemical production, large power plants and power stations, where strict requirements for safety and reliability are imposed. It is mainly used for cutting off and connecting the pipeline medium, and can also achieve regulation and control of the fluid under specific conditions.

1. Outstanding ultra-high pressure tolerance and safety performance

The core design pressure rating of the valve reaches as high as 900LB, which indicates that it can withstand extremely high pipeline pressure and ensures absolute reliability at critical safety points such as long-distance natural gas pipelines and the outlets of high-pressure reaction devices. Its structure has undergone reinforced calculations and validations, and it can still maintain the integrity and sealing performance of the valve under ultra-high pressure, making it the cornerstone for the safe operation of high-pressure and ultra-high-pressure systems.

2. Flexible connection and drive configuration, suitable for complex working conditions

This valve offers three mainstream connection methods: flange, welding, and thread. Users can flexibly choose according to pipeline design, sealing requirements, and maintenance habits, achieving perfect compatibility with various pipeline systems. Meanwhile, the options of manual, pneumatic, and electric drive methods enable the valve to not only meet the local manual operation needs but also easily connect to pneumatic control systems or electric automation systems, providing a foundation for the intelligence and automation control of factories.

3. Dual structure design, precisely matching different application requirements

This series of products simultaneously covers both the floating and fixed classic structures. The floating structure is compact and has a good self-sealing reinforcing effect, making it suitable for conventional high-pressure scenarios. While the fixed structure, due to the fact that the ball is fixed by the upper and lower shafts, offers more stable torque and more uniform valve seat wear in high-pressure and large-diameter (DN ≥ 200) conditions, making it particularly suitable for critical positions where high requirements are placed on valve lifespan and stability.

4. Multi-material sealing system, achieving wide compatibility with various media

The selection of the material for the sealing pair is the key for valves to adapt to different media. From the PTFE soft seal with extremely low friction coefficient and excellent chemical inertness, to the N material or oriented polyphenylene that is wear-resistant, and then to the metal hard seal that is resistant to high temperatures and erosion, the rich combination of sealing materials enables this valve to handle water, steam, oil, natural gas, and even various corrosive chemicals and media containing particulate impurities, covering the vast majority of industrial fluid application scenarios.

5. Full-diameter design and diversified valve body material optimization to enhance system performance

The Full Bore flow channel design ensures that when the valve is fully open, the inner diameter of the flow channel is basically the same as that of the connected pipeline, significantly reducing flow resistance and pressure loss. This design is particularly suitable for pipeline systems that require high flow rates or pigging operations. The valve body and internal components can be made of materials such as A105 carbon steel, 304 or 316 stainless steel. Users can make the optimal choice based on the corrosiveness of the medium, temperature, and cost budget, achieving a balance between performance and economy.

6. Positioned towards core applications in the energy and heavy industry sectors

From design pressure, structural selection to material configuration, this series of valves fully meets the strict standards and complex working conditions in heavy industries such as natural gas, petrochemicals, and power. It is not only the core equipment for cutting off or connecting high-pressure pipelines, but also has reliable regulating capabilities, which makes it play an important role in process sections requiring flow control. It is one of the key components for ensuring the safe and efficient operation of modern large industrial installations.
