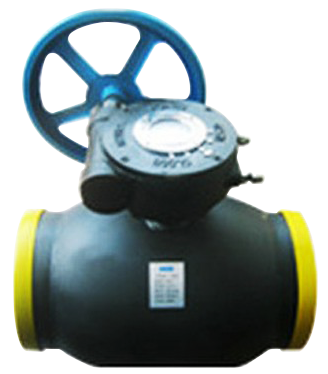

Q361F Fully Welded Ball Valve

The Q361F fully welded ball valve is a highly reliable and maintenance-free pipeline control valve specially designed for harsh working conditions. Its core design concept aims to achieve long-term trouble-free operation and extremely low life cycle costs.

This valve adopts an advanced fully welded valve body structure, integrating seamlessly with the pipeline system. This fundamentally eliminates the risk of external leakage. Its key sealing components are composed of carbon fiber reinforced fluororubber (PTFE) seals. This material exhibits excellent wear resistance, chemical stability, and self-lubrication properties, enabling the valve to maintain long-term stable operation even under challenging conditions such as frequent opening and closing operations or when the medium contains trace impurities and chemical substances.

The core component for opening and closing the valve - the ball - is made of stainless steel and undergoes meticulous grinding processing. This ensures extremely high spherical roundness and smoothness, which is the physical foundation for ensuring that the valve can still open and close freely and maintain stable torque even after years of use. The valve adopts a classic floating ball structure and ingeniously employs an inclined plane elastic design, allowing the sealing ring to continuously and adaptively press tightly against the surface of the ball. This design ensures that even in the case of pressure fluctuations or instability in the pipeline system, the sealing surface can maintain uniform and sufficient pressure ratio, thereby ensuring a tight shut-off seal.

In addition, a dual leak-proof design is adopted at the valve stem. Through the combination of two independent "O" type sealing rings, it enables the valve stem to rotate flexibly while ensuring the absolute reliability of this moving sealing point, thereby further enhancing the overall zero-leakage performance of the valve.

True maintenance-free design and long-term economic efficiency

The valve is designed to achieve the maximum operational autonomy and reliability. Its sealing system is self-lubricating and does not require regular addition of lubricants; its structure is stable and does not need periodic adjustments. This "install and forget" feature significantly reduces long-term maintenance labor costs and material costs, achieving long-term reliable continuous operation with low operating costs, and demonstrating outstanding comprehensive economic benefits throughout the entire life cycle.

2. Fully welded without cast parts structure, with reliable intrinsic safety

The valve body is manufactured using a fully welded process, completely eliminating the internal defects such as sand holes and gas pores that may exist in traditional cast valve bodies. This results in a product with high structural strength and uniform pressure-bearing performance, fundamentally enhancing the inherent safety of the valve. This structure not only is relatively lighter in weight but also completely avoids the unreliable risks caused by casting quality issues, and is particularly suitable for underground direct-buried or important industrial pipelines with extremely high safety requirements.

3. Elastic self-sealing and adaptability to pressure fluctuations

The unique inclined-plane elastic sealing design is the key to the performance of the valve. This design enables the sealing ring to have a certain adaptive ability in pressing against the ball. When the system pressure increases, it can assist in enhancing the sealing effect; when the pressure decreases, the elastic element can still provide a stable initial sealing force. This characteristic ensures that the valve can maintain a constant and tight shut-off even when facing pressure fluctuations in the pipeline network or unstable working conditions, and the sealing performance is not affected.

4. High degree of installation and configuration flexibility

The valve has been designed with full consideration for the convenience and adaptability of on-site installation. The valve stem can be extended as needed to facilitate operation even when buried deeply or when an insulation layer is added. The operating handle is designed to be detachable and can be installed in reverse to adapt to different pipeline layouts and operation space orientations. The overall structure is simple, and the installation and adjustment process is convenient and fast, significantly saving on-site construction time and manpower.

5. Precise manufacturing ensures long-lasting and smooth operation

The stainless steel sphere has undergone high-precision grinding. Combined with the optimized valve seat and valve stem support design, the valve can still operate smoothly and effortlessly during opening and closing even after years of use, without any resistance. The "O" ring seal at the valve stem end with a low friction coefficient also contributes to achieving a reliable operation experience with low torque and long service life.
