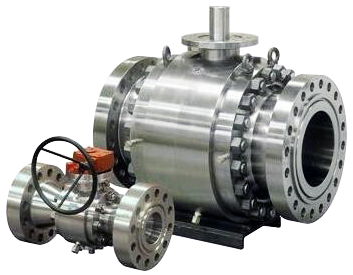

Large-diameter ball valve

The large-diameter ball valve is an advanced and well-made industrial pipeline control device. It is composed of core components such as the valve body, valve cover, ball, valve stem, valve seat and sealing assembly. This series of valves is renowned for its excellent versatility, reliable sealing performance and wide range of working pressure adaptability. It can be widely applied in almost all fluid transmission pipelines including water supply, sewage treatment, construction engineering, petrochemicals, food and pharmaceuticals, light textile, power, shipbuilding, metallurgy and energy systems, meeting the demanding requirements of various industries.

Its design takes into account both economic efficiency and applicability. Users can flexibly choose the most suitable sealing material based on the specific characteristics of the medium (such as corrosiveness, wear resistance, and temperature). This allows for optimizing the sealing effect and wear resistance life while effectively controlling the usage cost. The valve is designed and manufactured in accordance with international prevailing pressure grade standards, covering a wide pressure range from 150LB, 300LB, 600LB to 900LB, 1500LB, and even 2500LB. It can provide precise cutting and regulating solutions for different pressure grade pipeline systems.

In addition, the manufacturer guarantees a quality assurance period of up to 18 months from delivery, and provides lifetime professional technical support to ensure that users receive reliable protection throughout the product's lifecycle.

1. Low-torque operation and long-lasting sealing, with outstanding reliability

The valve adopts an optimized design of a rotating ball and a valve seat matching structure. During the opening and closing process, the friction force between the sealing surfaces is significantly reduced. This not only makes the valve operation smooth and with low opening torque, but also greatly reduces the wear of the sealing components. Combined with carefully selected sealing materials, the valve can maintain excellent sealing performance even after long-term and frequent opening and closing, thus achieving an extremely long service life and operational reliability far exceeding that of ordinary valves.

2. Precision casting and CNC machining lay a solid foundation for high quality.

The valve body is formed through a precise casting process, ensuring a dense internal structure and high structural strength. It is capable of perfectly withstanding the high pressure and heavy load brought by large-diameter pipelines. After the casting process, the surface of the valve body undergoes strict secondary shot blasting treatment, which not only eliminates surface defects but also achieves a fine and uniform appearance texture. The core valve seat sealing surface is precisely machined using a full CNC machine, ensuring extremely high dimensional accuracy and surface finish. This is the physical basis for achieving zero-leakage sealing of the valve.

3. Modular design and flexible configuration, suitable for complex working conditions

The core advantage of this product lies in its high degree of configurability. Users can select different valve seats and sealing materials (such as PTFE, reinforced polytetrafluoroethylene, metal hard seals, etc.) based on the chemical properties, temperature, and particle content of the actual conveying medium. Additionally, the product series comprehensively covers multiple levels from normal pressure to ultra-high pressure. This modular and series-based design concept enables it to precisely match various complex working conditions, ranging from municipal water supply to deep-sea oil extraction, in the most economical way.

4. Comprehensive international certifications and a sound quality management system guarantee

This product adheres to extremely strict quality standards at every stage of its production and manufacturing process. The production company has established and continuously operated a sound quality assurance system. Its key qualifications include the internationally recognized ISO9001:2008 quality management system certification, the API 6D certification for valves in the oil and gas industry from the American Petroleum Institute, and the EU CE safety certification allowing the product to freely enter the European market. These authoritative certifications are strong evidence that the product has reached the international advanced level throughout the entire process of design, raw material selection, production, and testing, providing users with solid quality confidence and purchasing basis.
